ALPHA Touch | Rim panic exit device

Forty years on from the invention of the first panic exit device in Italy, CISA writes a new
chapter in the history of security.

RELIABILITY THAT LASTS
Efficient component design simplifies assembly and ensures quality performance under
heavy-usage conditions.

QUICK AND EASY INSTALLATION
The intuitive design and reduced number of components saves valuable time during installation.

FLEXIBLE CONFIGURATIONS
Combining aesthetic and functional variants of products, outside access devices and accessories.

SUPERIOR USER EXPERIENCE
The ergonomic grip and the increased contact surface reduce the effort required to open and close the bar by 25%, improving safety and comfort of use.

SEE THE RANGE

FAQ

RELIABILITY THAT LASTS

With Alpha, we are pre-empting the future: our products comply with
the new European Regulation No. 2024/3110 and guarantees:

MAXIMUM STABILITY
The ALPHA Touch bar provides a wide and secure contact surface without oscillation,
noise or friction when opening and closing the door.

SECURING WITHOUT SURPRISES
Thanks to the sliding pin insertion system, the attachment of rods and cables is easy and safe.

STRONGER COVERING ELEMENTS
The covering elements for mechanical parts are securely fastened
avoiding the risk of loosening and increases impact resistance.

QUICK INSTALLATION

The efficient design of the components reduces installation time

HARDWARE AND TOOLS REDUCED TO A MINIMUM
With only three universal hardware items
and two tools.

SIMPLIFIED CUTTING OF BARS
The online guide makes it easy to take
the exact measurements and cut the aluminum.

PERFECT MEASUREMENTS USING THE RIGID TEMPLATE
The option makes even easier to take
measurements and drill precise holes.

FLEXIBLE CONSIGURATIONS

With Alpha, we have gone a step further to offer you simple solutions to complex needs, without limiting your choice.

COMPONENT MODULARITY
Thanks to the common and interchangeable components between the Touch and Push models, the risk of errors is virtually zero and intallation time is significantly reduced.

CHOICE OF OUTSIDE ACCESS DEVICES
Outside access devices are available with handle or fixed knob, involving a patented system that reduces effort.

AUTOMATED ACCESSES
Possibility to intgrate with all access control systems and to upgrade to the motorised version by purchasing the motor separately.

EASY AND COMPATIBLE RETROFIT
ALPHA models are also designed to replace previous models without the need of new holes.

INTERCHANGEABLE LOCKING POINTS SYSTEM
The additional locking points system makes it possible to switch from cable to rod without the need to dismantle additional parts.

SUPERIOR USER EXPERIENCE

With Alpha, we have gone a step further to improve the ergonomics of the product, for those who install it and for those who use it every day.

SECURE GRIP AT ALL TIMES
The Touch bar has edges with protrusions for a more secure grip.

OPTIMISED HANDLING
Each component is designed to facilitate the action of pushing and pulling,
that takes place in convenient positions

MORE SPACE, FEWER OBSTACLES
Smaller dimensions and linear surfaces ensure a minimalist aesthetic look
and at the same time a wider and freer exit route, with fewer obstructions.

GREATER PUSH SURFACE AREA
The new square bar design increases the pushing surface area by 35%,
making exiting faster and safer in an emergency.

TECHNICAL FEATURES

Available in the rim version with single point locking and up to 3 locking points and in the mortice version in combination with Multitop Matic EXIT, SicurExit, Sicur Panic, Mito Panic, Exitlock, Heavy Duty panic function locks
Available lengths: 840/1200/1300 mm
Reduction of length up to 300 mm.
Fire door version available for mortice and rim application (Spec. FR)
Motorised rim (fire door version Spec. FR) and mortice version
Hand 0 (non-handed)

STANDARD CONFIGURATION OPERATION

From the inside: by pushing the bar
From the outside: with cylinder only or with outside handle or fixed knob access device

GUIDED INSTALLATION

CISA provides you with a step-by-step installation guide.

Discover all the combinations and details about the mechanisms and simplify the installation of Alpha panic bars.

Simply scan the QR code and follow the instructions on your smartphone.

RETROFIT

CUTTING OF BARS

BAR ASSEMBLY AND MECHANISMS

COVER ASSEMBLY

FULL RANGE

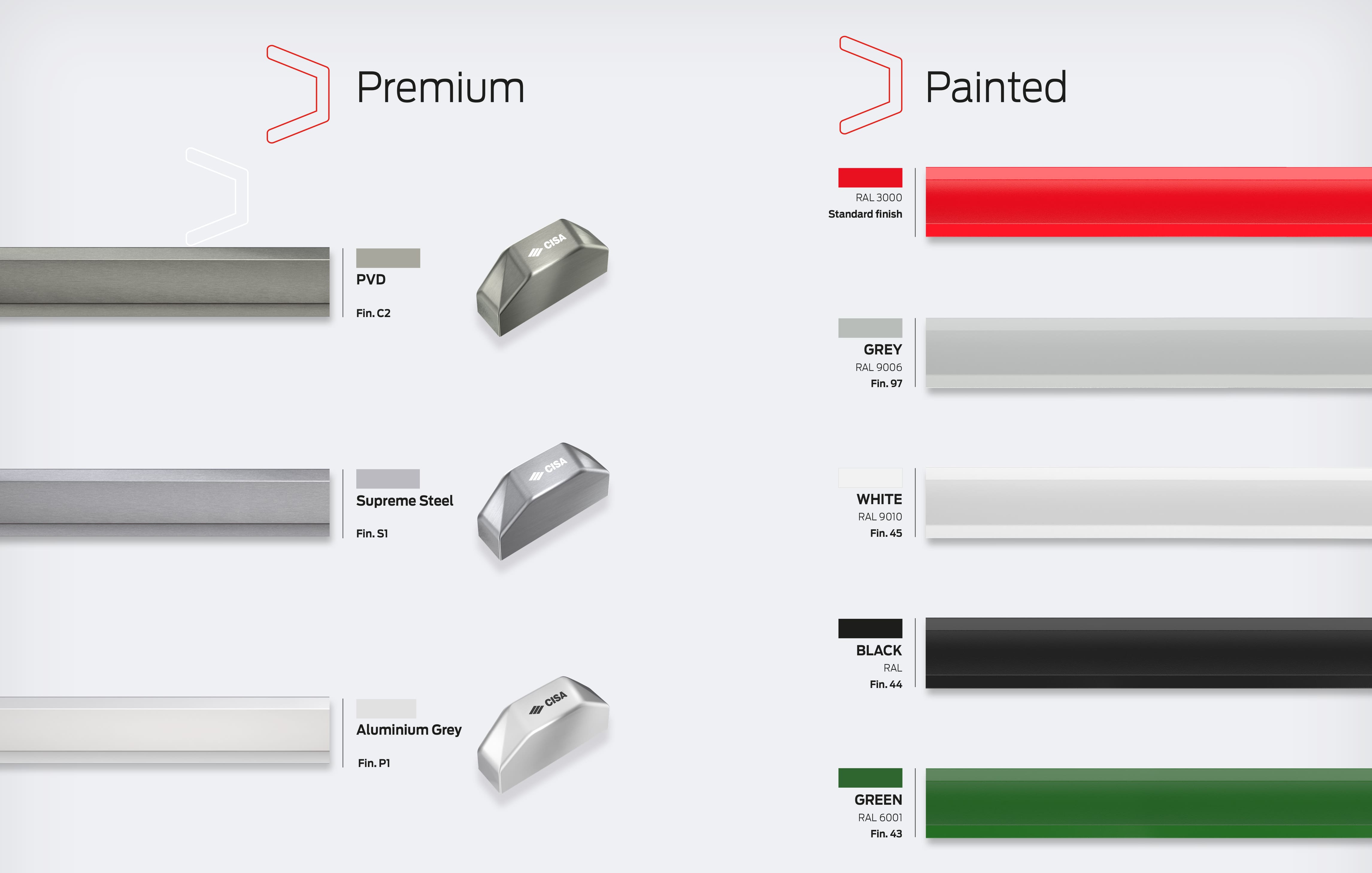

PREMIUM FINISHES

PVD

SUPREME STEEL

MATT ALUMINIUM GREY

SUPPLIED AS STANDARD

Strikers
Fixing screws
Installation and maintenance instructions
ICIM and CE certificates of compliance

ON REQUEST

Additional locking points for multi-point configurations for door heights up to 2,500 mm
Cable kit and extension bolt rod kit for multi-point configuration
Locking point extended bolts for door heights up to 3,500 mm
Outside access devices
Fast outside access devices kit for installation on ALPHA series panic exit devices
Hold-open device
Microswitch
