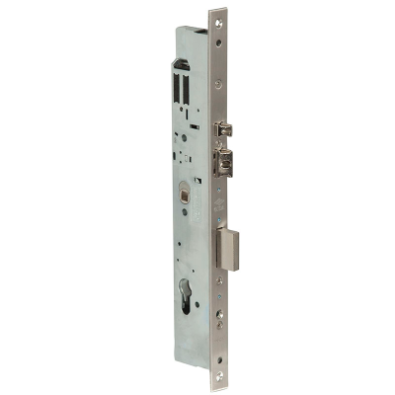

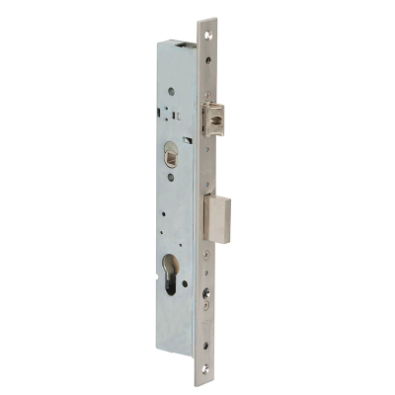

Multitop Pro - mortice lock

Product Description

The Multitop Pro Elettrica lock with latch bolt only lets you open the door from a distance, while maintaining high security levels.

Protection against forced entry.
The level of security can be further heightened as the lock can be fitted with protective roses.

Protected gears. Cases are enclosed to eliminate the possibility of damage during installation and to stop dirt and dust getting into the gears as this can prevent correct operation of the lock.

Easy and economical to install. Reversible and adjustable latch bolt to ensure ideal coupling with the strike plate.

Personalised level of security. Choose the cylinder which best meets your needs.

One key opens several doors. With master key systems, you can use one key to open several different accesses, such as doors, gates and garages.

Key comfort. Key is small in size and easy to use.

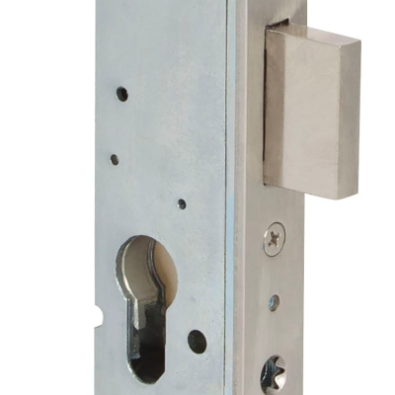

Locks installed with lateral deadbolts guarantee energy savings: the gear mechanism and the rounded deadbolt effectively correct heat distortion on doors. Deadbolts 12mm thick with anti-cut protection; dead-locking latch bolt when the deadbolt is not engaged.

Features

Technical features

  • Stainless steel faceplates
  • Cylinder protective rose can be installed

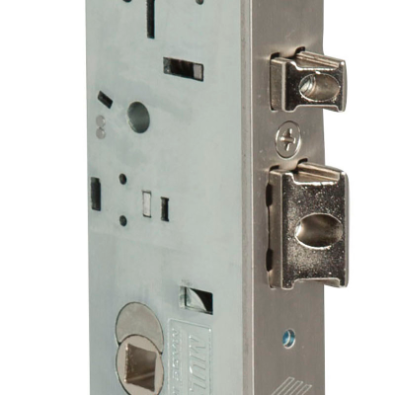

  • Dead-locking latch bolt: when the door is locked, the withdrawal of the deadbolt automatically blocks the latch bolt (only on electric version)
  • 15.5 mm case so the lock adapts perfectly to any kind of profile
  • Cases are enclosed to eliminate the possibility of damage during installation and to stop dirt and dust getting into the gears
  • Interchangeable with the corresponding locks with swing bolt

Supplied as standard

  • Pair of nylon protective roses
  • Fixing screws for lock and cylinder
  • Instruction sheet
  • Pair of nylon spacers

On request

  • Euro profile cylinder
  • Specific strike plates
  • Cylinder protective rose
  • Mechanical button
