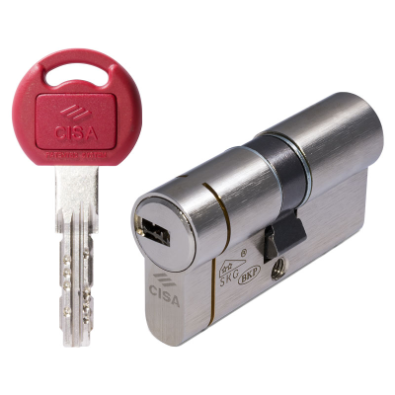

ASTRAL TEKNO PRO cylinder

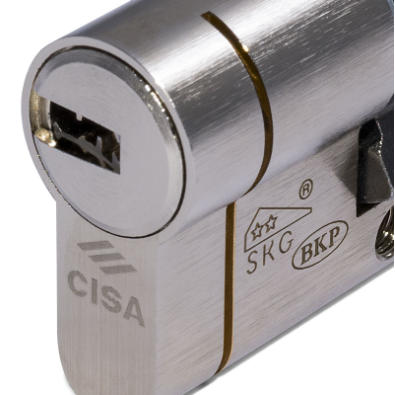

Astral Tekno Pro is the innovative evolution of the CISA Astral Tekno Euro cylinder. Its strength lies in the cut on the cylinder body. In the event of attempted forced entry, the cylinder snaps in a controlled manner at a predetermined point.

The heart of the cylinder is protected inside the lock and is therefore difficult to remove. If it snaps in this way, it is still possible to open the door from the outside with the keys.

Astral Tekno Pro is also fitted with elements inside the cylinder which increase its drill resistance.

The Tekno PRO key is protected by a patent (EP1867810B1) against unauthorized duplication, has a registered Community design (001996109-0001) and can be configured to open all accesses in the home with a single key. valid until 2037, and by a registered three-dimensional trademark (019010615): in fact as of 01/ 07/2024 the Italian Patent and Trademark Office (UIBM) granted the registration of the distinctive Astral Tekno key shape as a corporate trademark also valid at Community level.

Astral Tekno Pro key has a registered Community design (001996109-0001) and can be configured to open all accesses in the home with a single key.

High protection and controlled duplication: duplicates can only be obtained at CISA Tekno Centres or from CISA.

High resistance to bumping (percussion) thanks to the Bump Key Power (BKP) patented device.

Drill resistance: bitting system in hardened steel.



Marchio SKG.jpg gost.jpg

TECHNICAL FEATURES

Cylinder:

  • 10-pin key bitting system (6 active, 4 passive).
  • Brass body.
  • Brass plugs.
  • Clutch-type cam in self-lubricating sintered DIN steel.
  • Hardened steel pins.
  • Variable shape drivers in hardened steel.
  • Double side control steel pin.
  • Phosphor bronze and steel springs.
  • 100,000 cycles (in compliance with EN1303: 2015)

Keys:

  • Flat reversible.
  • In nickel-plated brass.
  • In nickel silver alloy for personalised profiles.
  • Ergonomic plastic key bow with personalised insert available in 5 colours.
  • Key neck 16 mm long, compatible with protective roses.

SUPPLIED AS STANDARD

  • 3 keys

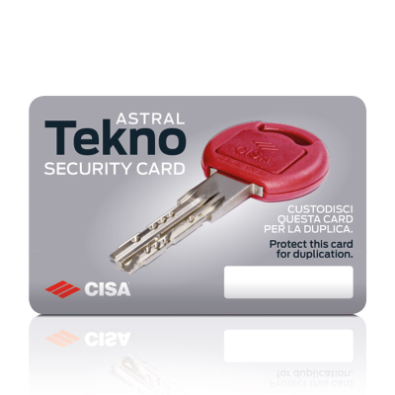

  • Security Card
  • Fixing screws
  • Operating and maintenance instructions

FINISHES

  • Nickel-plated satin brass
  • Polished brass

STANDARDS

In compliance with EN 1303:2005

  • Key Related Security: 6
  • Attack Resistance: 0
  • Durability: 6

PATENTS

  • Key: EP1867810B1
  • BKP: PCT/WO2007/074163A1
