Mito Sensor

Security you can always keep an eye on.

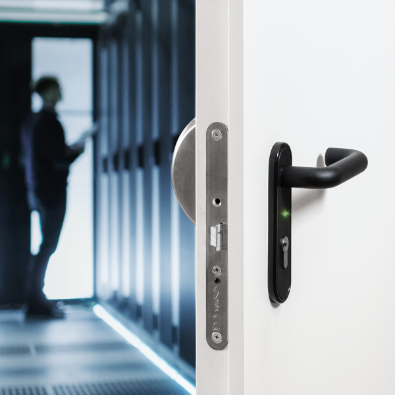

The new CISA Mito Sensor lock provides assisted access on fire doors installed in passageways and emergency exits.

The status of the door is always known: the lock’s electronic board verifies if the handle is enabled or disabled to open from outside. By connecting the LED to the lock, the sensors on the board will signal to the user if the door can be opened from outside or not.

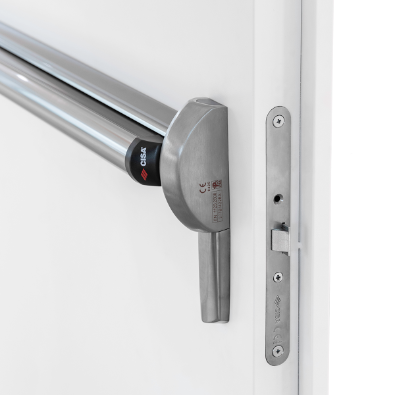

The MITO SENSOR lock can be installed with CISA panic exit devices, offering a complete, efficient and personalised solution thanks to:

Non-handed design

The new lock can be installed on both left and right hand doors; the selection of the hand is possible by moving a small lever on the lock.

Opening time customisation

The opening time can be set by turning the selector located directly on the lock to any position between a minimum of a 3'' to a maximun of 30''.

Installation

The installation can be done with either DC or AC power supply.

Request more info

FEATURES

The new MITO SENSOR lock completes the MITO range by introducing more advanced features than the mechanical and electrical versions.

Combined with fire doors and panic exit devices, CISA Mito Sensor is the best solution for passageways and emergency exits that require greater access control.

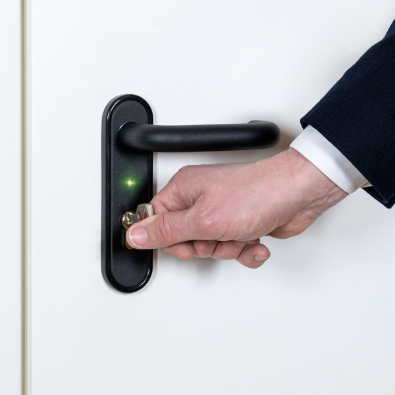

The door status is always known thanks to the electronic board’s control over engagement of the handle and the colour of the LED signalling opening or closing.

CLOSED DOOR

APPROACHING
THE CARD

OPEN DOOR

FEATURES

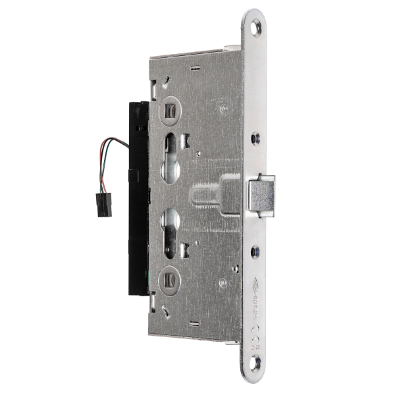

Zinc-plated steel case and cover
Zinc-plated steel 24 mm faceplate
Zinc-plated steel latchbolt
9 mm square spindle
Non-handed to match the door hand by means of a microswitch setting
Mechanical hold open device, with handle operated by the key
For installation on single or double-leaf doors
12V and 24V AC/DC power supply voltage
Variable lock opening time from 3 to 30 s, adjustable by trimmer (factory set time: 10 seconds)
Pre-set for connection to two-colour red/green LED
Grade S durability for 200,000 cycles at 50 N

SUPPLIED AS STANDARD

Cylinder fixing screws
1.5 m power supply cable

ON REQUEST

Panic exit devices (only for MITO SENSOR PANIC versions) CISA 1596XXXXX, 1597XXXXX, 15961XXXXX
Striker (see accessories section)
Square spindle (see accessories section)
Two-way two-colour red/green LED (see accessories section)
